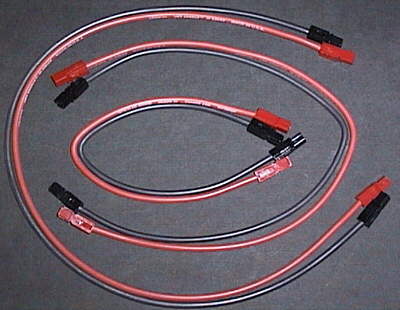

Pro Wiring Kit, 12ga $25.25

Part #RCE48

Click image for larger view

Everything you need to wire up your robot like the pros do in this sport. Six lengths of Deans Wet Noodle silicon jacketed wire with crimped Anderson 45 amp genderless PowerPole connectors. Two of each length (one in black, red): 12 inches, 18 inches and 24 inches (9 feet total.). Cut to your custom length to wire motors, batteries, disconnect switches, power controllers, etc

Bulk Deans Wet Noodle Cable $1.50/ft

Part #RCE42

Size: 12 gauge
Physical orientation: Cable, 1603 strands in 7 bundles
Composition: High purity OFC (oxygen free copper)
Insulation: Silicone - Ultra flexible, thus the name

I have in stock red and black - you mix the lengths of each however you like.

Important: do not forget to specify the length on the checkout page, otherwise the default length will be one (1) foot.

Bulk Silicone Jacketed Wire, 10ga $2.00/ft

Part #RCE46-10

Bigger motors require bigger wire! High temp silicone (150 degree C) jackets the 120 strands of tinned copper making it perfect for battery mains and high current motors. Best to crimp to but solders very nicely.

I have in stock white and black - you mix the lengths of each however you like.

Important: do not forget to specify the length on the checkout page, otherwise the default length will be one (1) foot.

Team Coolrobots Mondo Switch $50.00

Part #RCE44

Click image for larger view

This is the RCE45 switch (below) upgraded with a Delrin mounting body that swaps the red key for a 1/4" removable hex key. It was designed by Christian Carlberg for his heavyweight OverKill.

Mounting is by any combination 1/4-20 screws on a 1.50" bolt circle; use a minimum 5/16" clearance hole in the center for hex key access. Comes with two 1/4" keys to satisfy current BattleBots shutdown rules.

Weight: 6oz

Removable Links see prices below

part #RCE41 / #RCE43

Click image for larger view

Many event safety rules require a physically removable link to kill master power to your robot. These perfectly fit the bill and have been used in all major US and UK events. Both are assembled with rope lay welding cable and high strength mechanical crimps. For most applications the smaller RCE41 will be adequate (up to and including a pair of 3HP motors.) For higher current pancake motors on spinners and such, the larger RCE43 is required. Current ratings quoted below are from the manufacturer but practical usage in this sport lets them be exceeded for short durations.

RCE41 -	50 amp continuous rating, 6ga wire terminating in 1/4" copper lugs, 15 lb. disconnect force. Weight 4.6oz

	$18.00
RCE43 -	175 amp continuous rating, 1/0ga wire terminating in 5/16" copper lugs, 25 lb. disconnect force. Weight 21oz

	$37.00

Small Interference Suppression Caps $1.75/4-pack

Part #RCE70


	App Note (41K)

Monolothic ceramic X7R series capacitors from Panasonic. 0.1uF at 100 volts, minimal capicitance variation with temperature. Perfect noise clamp for small motors and relays.

Read the app note for general information on noise suppression of motors using capacitors.

Large Interference Suppression Caps $5.50/4-pack

Part #RCE71


	App Note (41K)

These are larger Panasonic "across the line" caps more suitable for high-power motors like the Bosch 750 and equivalent. Rated for 120v they can be used on motors up to 48v.

Read the app note for general information on noise suppression of motors using capacitors.
